To decode V-belt numbers, measure the belt's width and height to identify its type and section. Gather the belt's outside length using a flexible tape, then measure the top width with a caliper for precision. Verify the angle and profile with a protractor to ensure compatibility with your pulleys. Finally, align these measurements with your equipment's specifications such as load and speed requirements. This structured approach uncovers the essential V-belt specifications you need.
Key Takeaways
- Identify the belt type and section by measuring its width and height.
- Measure the belt's outside length using a flexible tape on a flat surface.
- Determine the belt's width with a caliper or ruler for a snug fit.
- Verify the belt's angle and profile to ensure proper pulley fitting.
- Match the belt to equipment specifications for optimal performance and efficiency.
Identify the Belt Type and Section
Measure the belt's width and height to find its type and section.

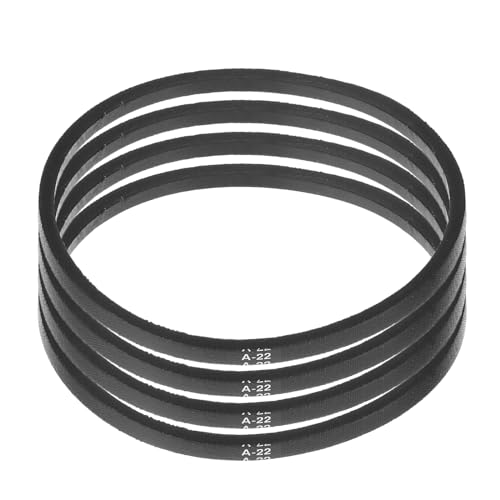

V-belts come in sections like A, B, C, D, and E. An A-section belt is 1/2 inch wide and 5/16 inch high.
A-section V-belts measure 1/2 inch in width and 5/16 inch in height.
Metric options include SPZ, SPA, SPB, and SPC, with different millimeter sizes.
Always check manufacturer specs for accuracy.
Measure the Belt's Outside Length
Measure the outside length of a belt on a flat surface using a flexible tape. Align it smoothly without any slack. Check twice for accuracy. Correct measurement ensures a snug fit, reducing slippage and wear.
- Outside length differs from effective length.
- Check manufacturer's specs for guidelines.
- Outer circumference affects pulley interaction.
- Choose the right length for top equipment performance.
Determine the Belt's Width
Measure the V-belt's top width with a caliper or ruler.
Widths usually range from 1/4 inch (6 mm) to 1 inch (25 mm). A snug fit prevents slippage, while a wider belt offers better grip.
Check machinery specs for the right fit.
Verify the Belt's Angle and Profile
Ensure the belt's angle fits the pulley using a protractor. V-belts have angles between 30-40 degrees.
Check the profile; belts can be trapezoidal or wedge-shaped. Accurate measurements prevent slippage and wear, ensuring proper machinery function.
Match the Belt to Equipment Specifications
Match the V-belt to your equipment's specifications.
Find the right V-belt by checking equipment needs, such as load, speed, and pulley fit. Consult the manual for exact details.
Ensure belt size matches pulley diameter and speed.
- Prevent breakdowns with the correct belt.
- Improve efficiency with the proper fit.
- Reduce wear with a good match.
- Maintain safety with accurate specs.
People Also Ask
How Do Environmental Conditions Affect V-Belt Performance?
Environmental conditions like heat, moisture, and dust affect V-belt performance by causing premature wear, slippage, and cracking.
You should ensure V-belts operate in optimal conditions to maximize their lifespan. Heat can lead to rubber degradation, while moisture causes swelling and weakening.
Dust and debris can get trapped, leading to abrasion. Regular maintenance and choosing belts with higher heat and moisture resistance can help mitigate these issues, ensuring better performance.
What Is the Significance of the V-Belt's Material Composition?
The V-belt's material composition significantly impacts durability, flexibility, and resistance to wear and environmental factors.
A belt made from high-quality rubber compounds, like neoprene, offers excellent heat resistance, while polyurethane provides superior abrasion resistance.
Kevlar-reinforced belts increase tensile strength, ideal for high-load applications.
Compare these with standard rubber belts, which may degrade faster under harsh conditions.
Consider your specific application needs to choose the right material, ensuring efficiency and longevity in your machinery.
How Often Should V-Belts Be Replaced or Maintained?
Replace or maintain V-belts every 1,500 to 2,000 hours of operation or annually, whichever comes first.
Regular checks prevent issues like slippage or cracking. Inspect for wear, tension, and alignment. V-belts made from neoprene or EPDM last longer, but specific needs vary.
For example, a manufacturing plant might opt for quarterly inspections due to heavy usage.
Proper maintenance ensures efficiency and extends the lifespan of your equipment, reducing downtime and repair costs.
What Tools Are Needed to Measure V-Belt Dimensions Accurately?
You'll need a caliper, tape measure, and a tension gauge to measure V-belt dimensions accurately.
Understanding the belt's width, length, and tension is crucial. Use a caliper to measure the belt's top width precisely. A tape measure helps determine the belt's circumference or outside length.
A tension gauge is essential for checking tension to ensure optimal performance. Always compare measurements against manufacturer specifications for accuracy, ensuring longer belt life and improved machinery efficiency.
Can V-Belts Be Repaired or Should They Always Be Replaced When Damaged?
V-belts should be replaced when damaged rather than repaired.
Damaged belts can lead to inefficiency and safety risks. V-belts, designed for power transmission, become unreliable if compromised. Repair attempts often don't restore original strength or flexibility.
Regular inspections help identify wear patterns, such as cracking or glazing. Replacement ensures optimal performance and prevents downtime.
Opting for a new belt maintains machinery efficiency, prolongs equipment life, and reduces the risk of unexpected failures.
Wrapping Up
To decode V-belt numbers, first recognize the belt type and section. Measure the outer length, check the width, and confirm the angle and profile. Then, ensure it matches the equipment specs. This process is key for choosing the right V-belt, which keeps your equipment running smoothly. Belt sections like A, B, or C denote specific widths and angles; for example, an A-section is usually 1/2 inch wide. Always cross-check with manufacturer guidelines to avoid mismatches and keep your machines efficient.
